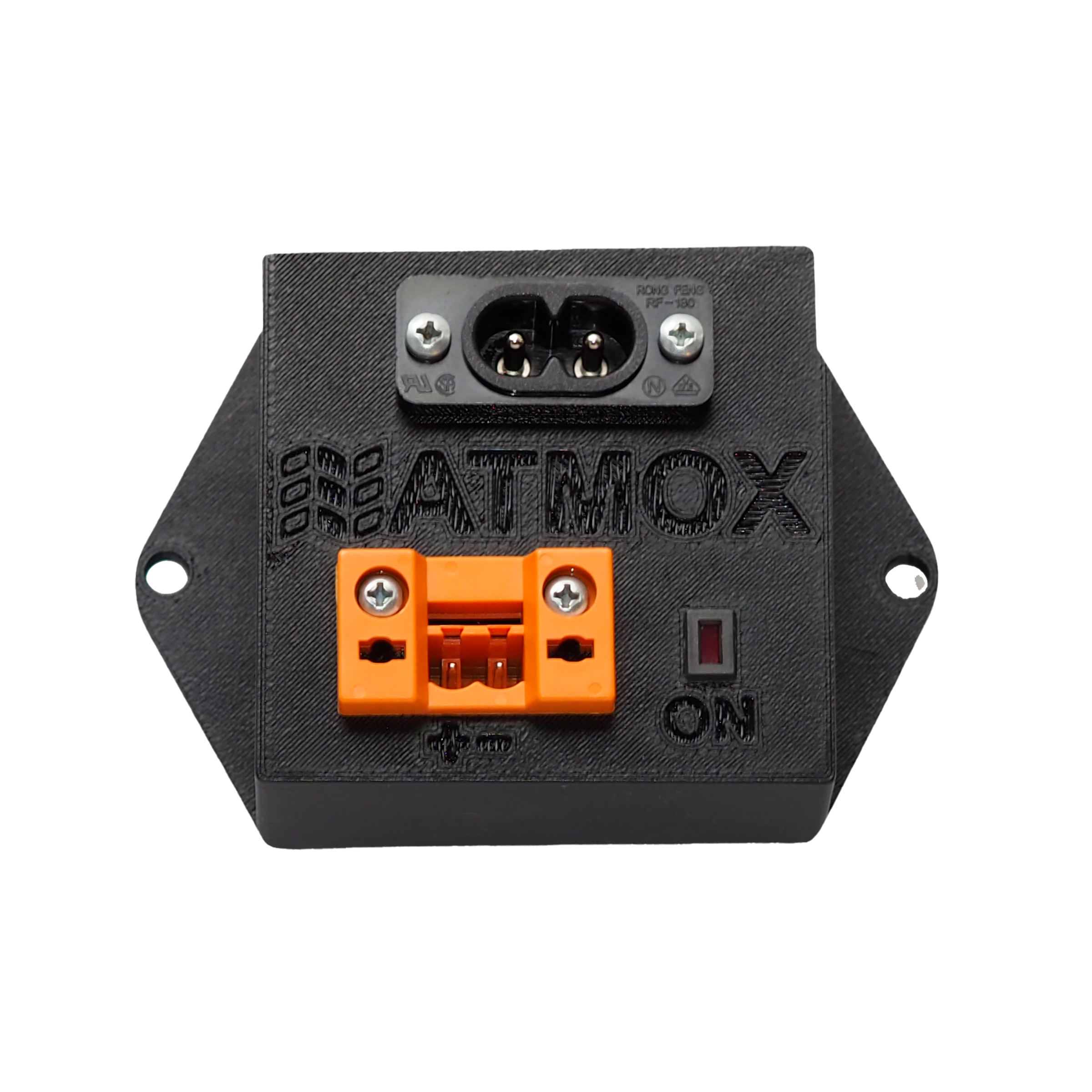

ATMOX Crawl Space Dehumidifier Relay – 12VDC Control Module for Dehumidifiers with 24VAC Terminal Blocks, Works with ATMOX Crawl Space Controllers, Moisture Control System

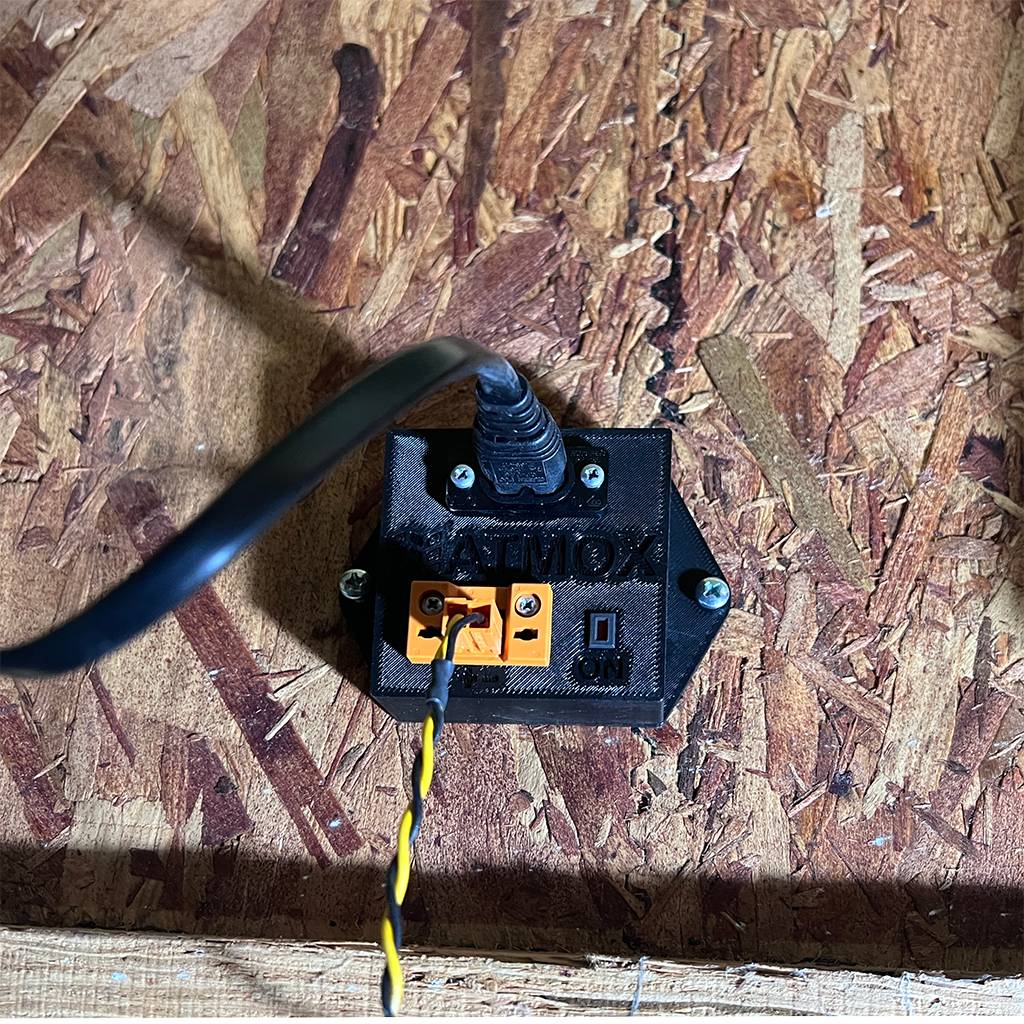

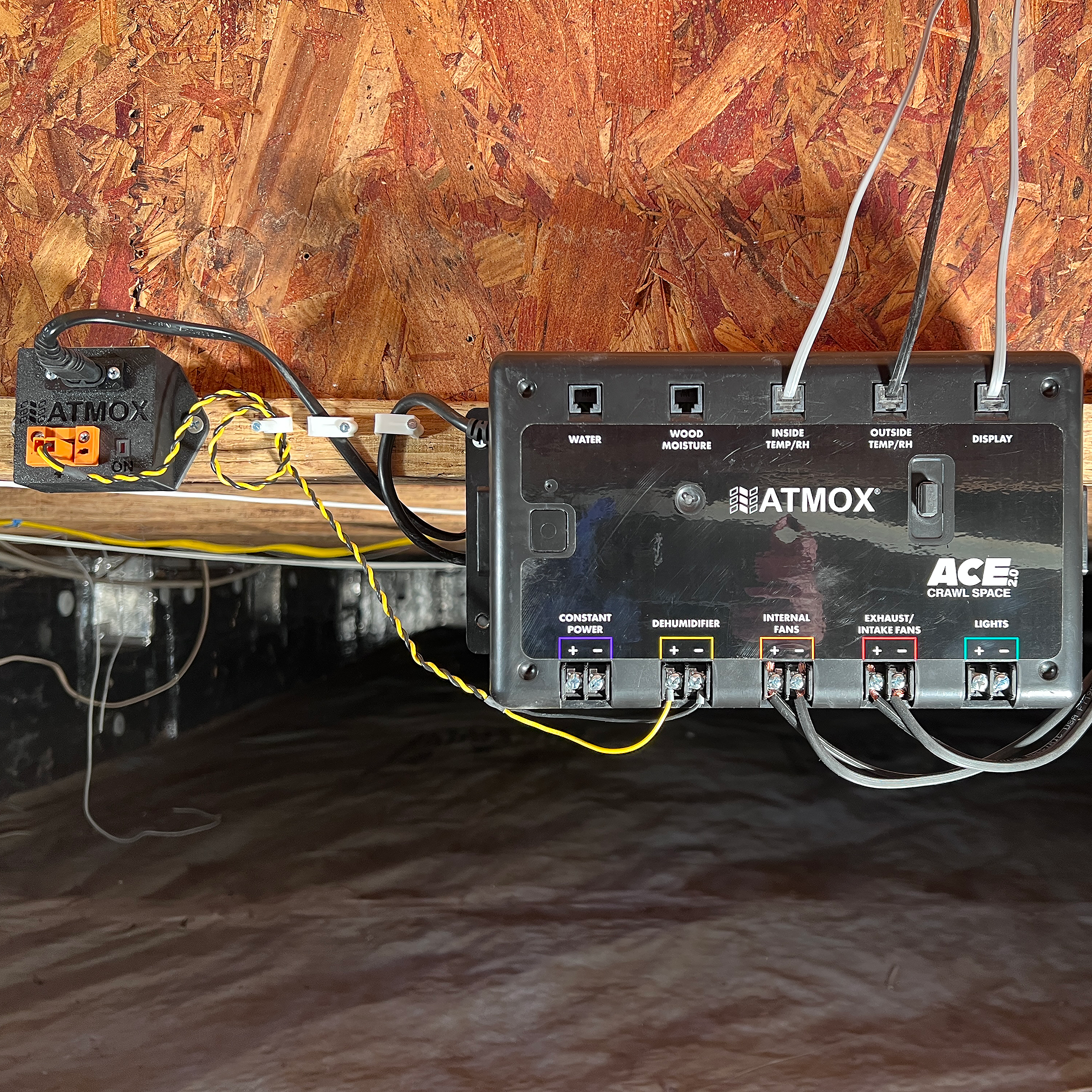

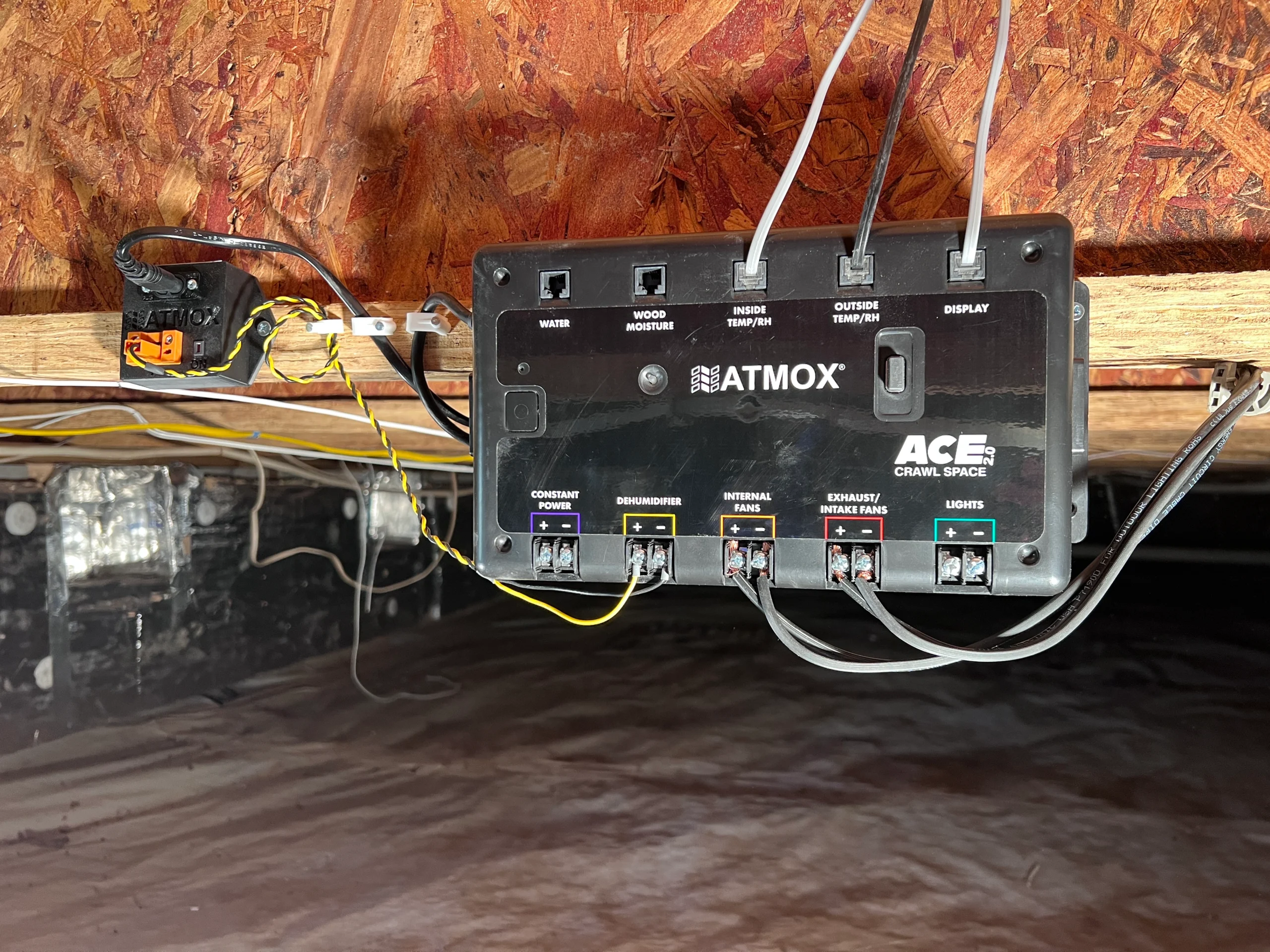

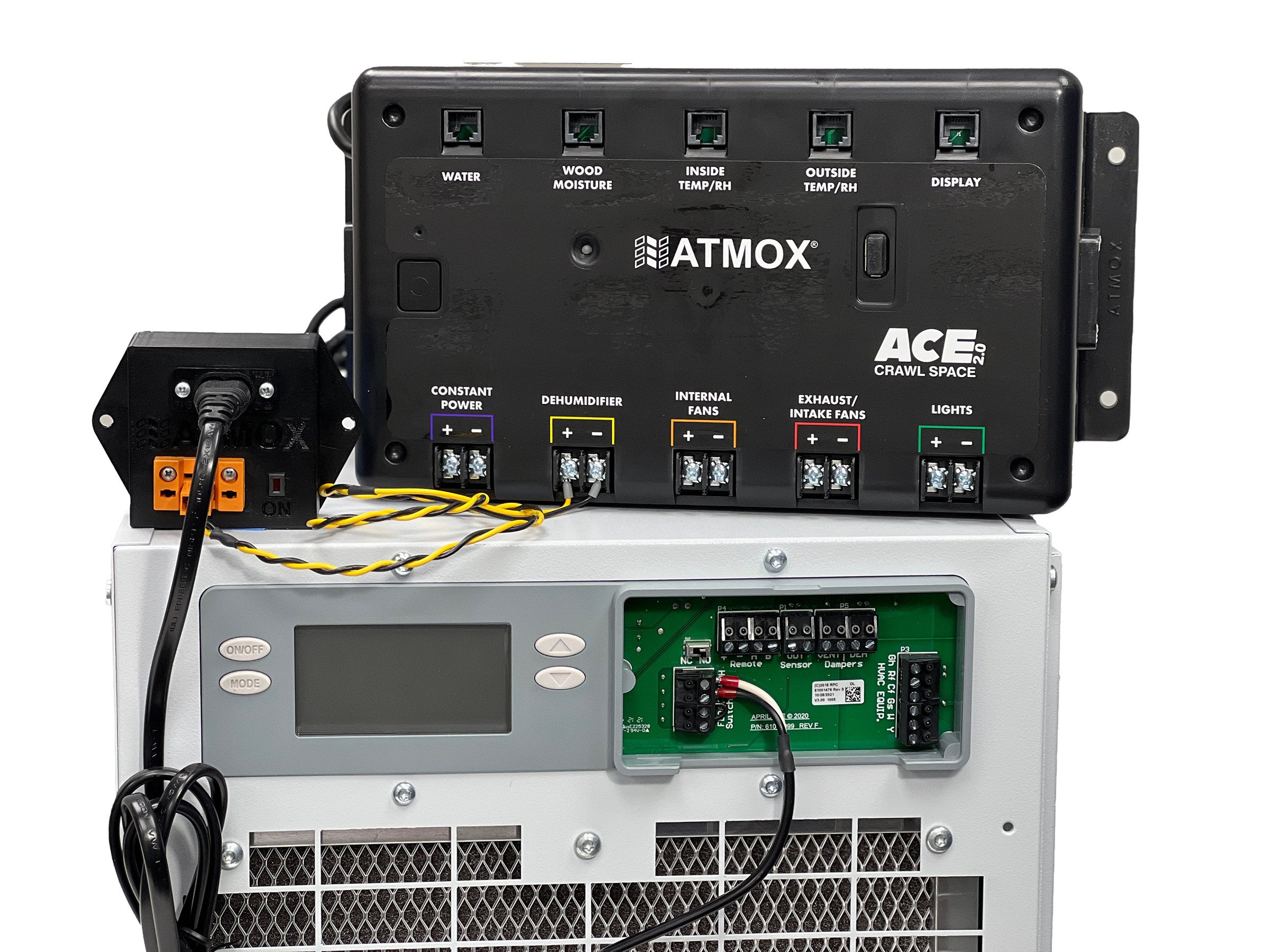

The ATMOX Crawl Space Dehumidifier Relay allows an ATMOX crawl space controller to automatically control the operation of compatible dehumidifiers equipped with 24VAC terminal blocks. By connecting the relay between the ATMOX controller and the dehumidifier, the system can intelligently activate or deactivate the dehumidifier based on crawl space conditions. When integrated into an ATMOX crawl space system, the relay enables the controller to manage humidity levels more effectively by commanding the dehumidifier when moisture levels rise. The dehumidifier itself continues to receive power from a standard electrical outlet, while the relay provides the communication link that allows the controller to control operation. Designed for easy installation, the relay mounts directly to a crawl space joist using the included mounting hardware. The compact module connects to the ATMOX controller using 12VDC input power, providing reliable switching control for compatible dehumidifier systems. Built for durability and long-term reliability, the ATMOX Dehumidifier Relay is backed by a 3-year limited product warranty, making it a dependable component in a complete crawl space moisture control system. What’s Included in the Box Dehumidifier Relay with Connector Cables Quick Splice Connectors Wood Mounting Screws Spec Sheet Product Specifications Use: Allows external control of select dehumidifiers by ATMOX Crawl Space Controller Input Voltage: 12VDC Maximum Switching Voltage: 300VAC / 150VDC Maximum Switching Current: 2A Mounting: Internal joist mounting with two screw holes Compatibility may vary depending on the dehumidifier model. Contact ATMOX for compatibility questions.
